Continuous cutters
Vacuum continuous cutters
Continuous fine cutting under vacuum, with a contact-free cutting system. KK 144 C has a 140 mm plate and a 2–9 t/h capacity; KK 254 C has a 250 mm plate and a 5–15 t/h capacity. On C models, vacuum is applied in the cutting set. KK 254 TV has a controlled pump and vacuum in the hopper, pump and cutting set; the linked manufacturer’s sheet specifies 10–12 t/h. Capacity depends on the product and configuration.
01
Continuous cutting
KK 144 C
Vacuum continuous cutter with a 140 mm plate, 90 kW AC-6 drive and a capacity of 2–9 t/h according to the manufacturer’s technical sheet.
- Plate diameter
- 140 mm
- Capacity
- 2–9 t/h
02
Continuous cutting

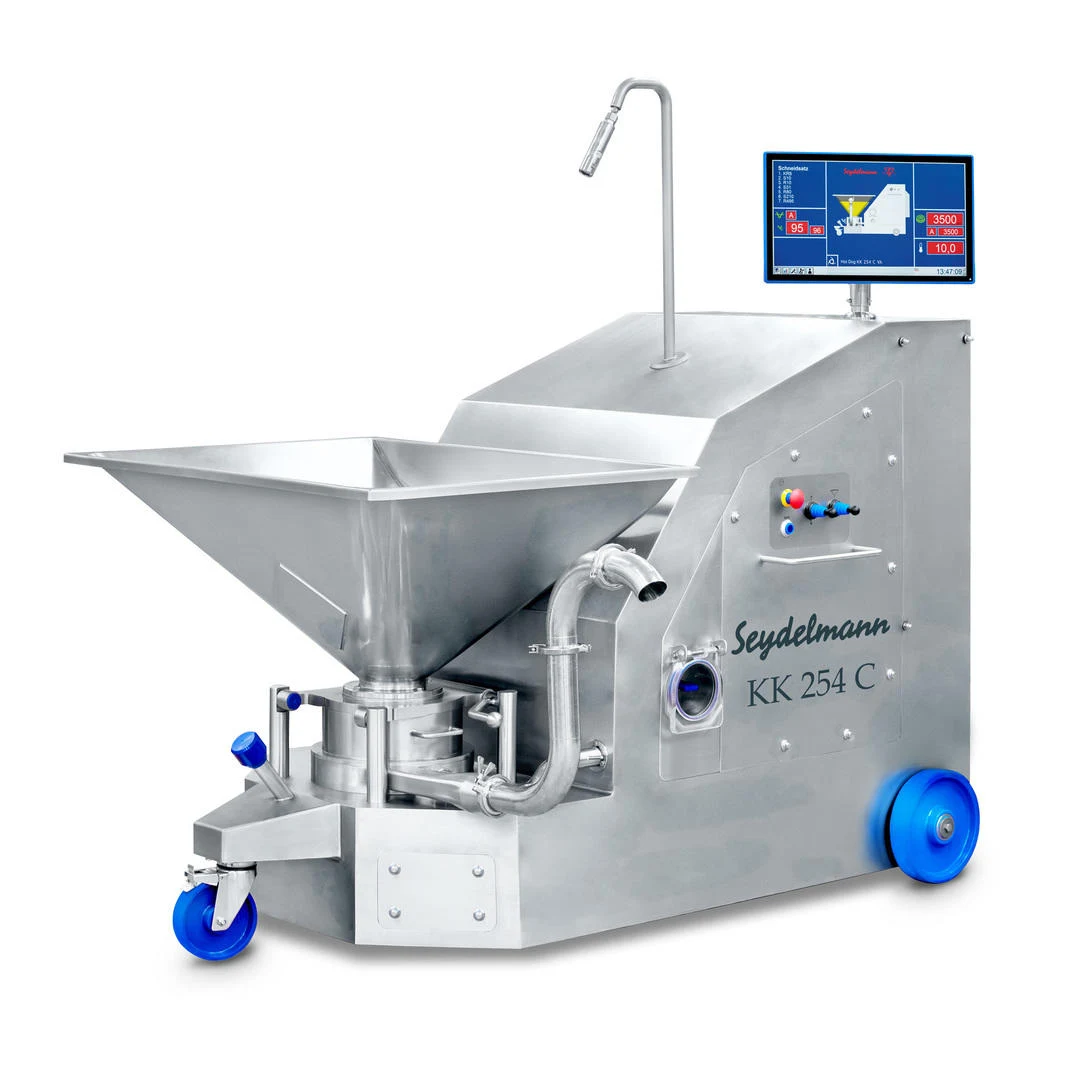

KK 254 C
Vacuum continuous cutter with a 250 mm plate and a capacity of 5–15 t/h according to the manufacturer’s technical sheet, for operation with or without vacuum.
- Plate diameter
- 250 mm
- Capacity
- 5–15 t/h
03
Continuous cutting

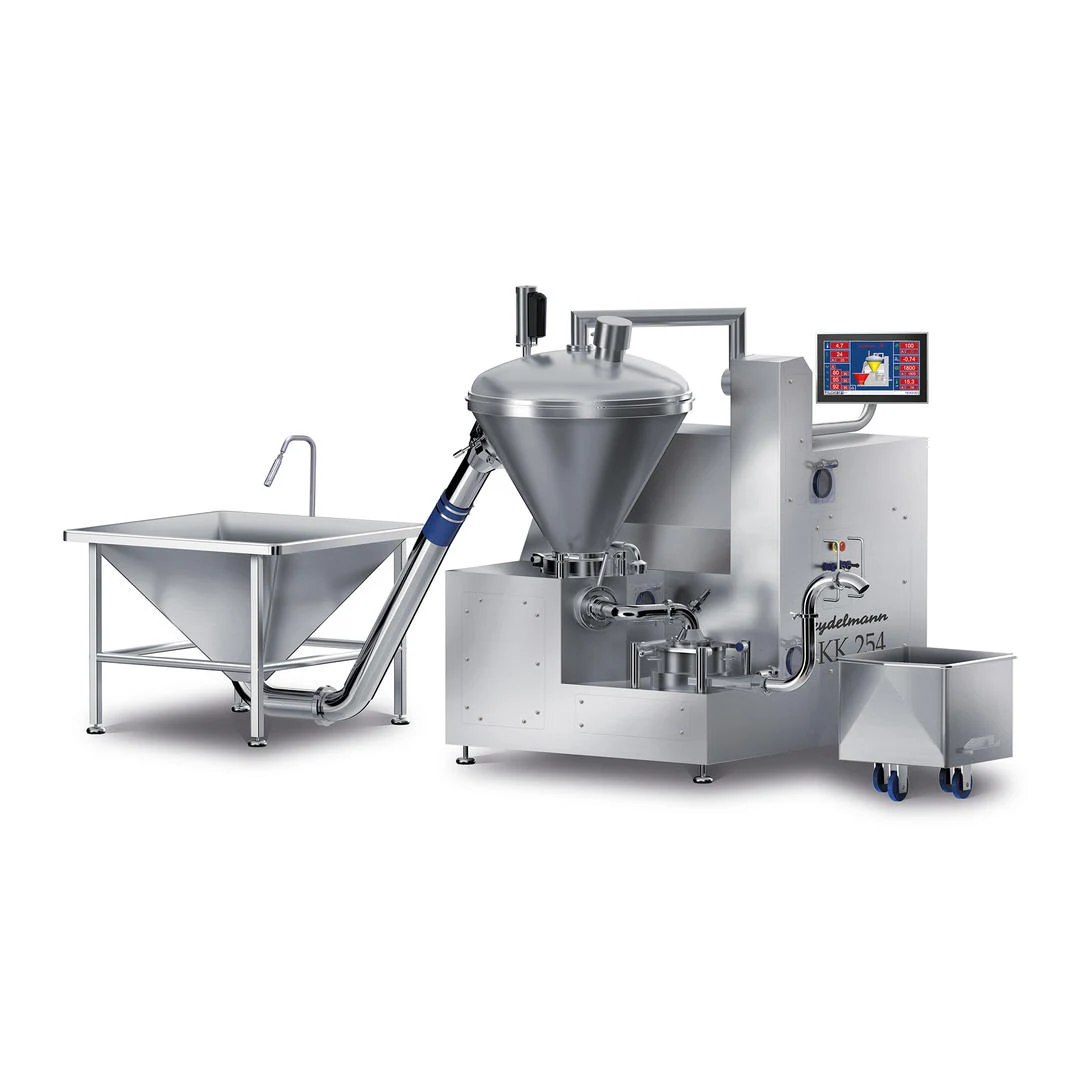

KK 254 TV
Continuous cutter with vacuum in the hopper, pump and cutting set, a 250 mm plate and a capacity of 10–12 t/h according to the linked manufacturer’s technical sheet.
- Plate diameter
- 250 mm
- Capacity
- 10–12 t/h
