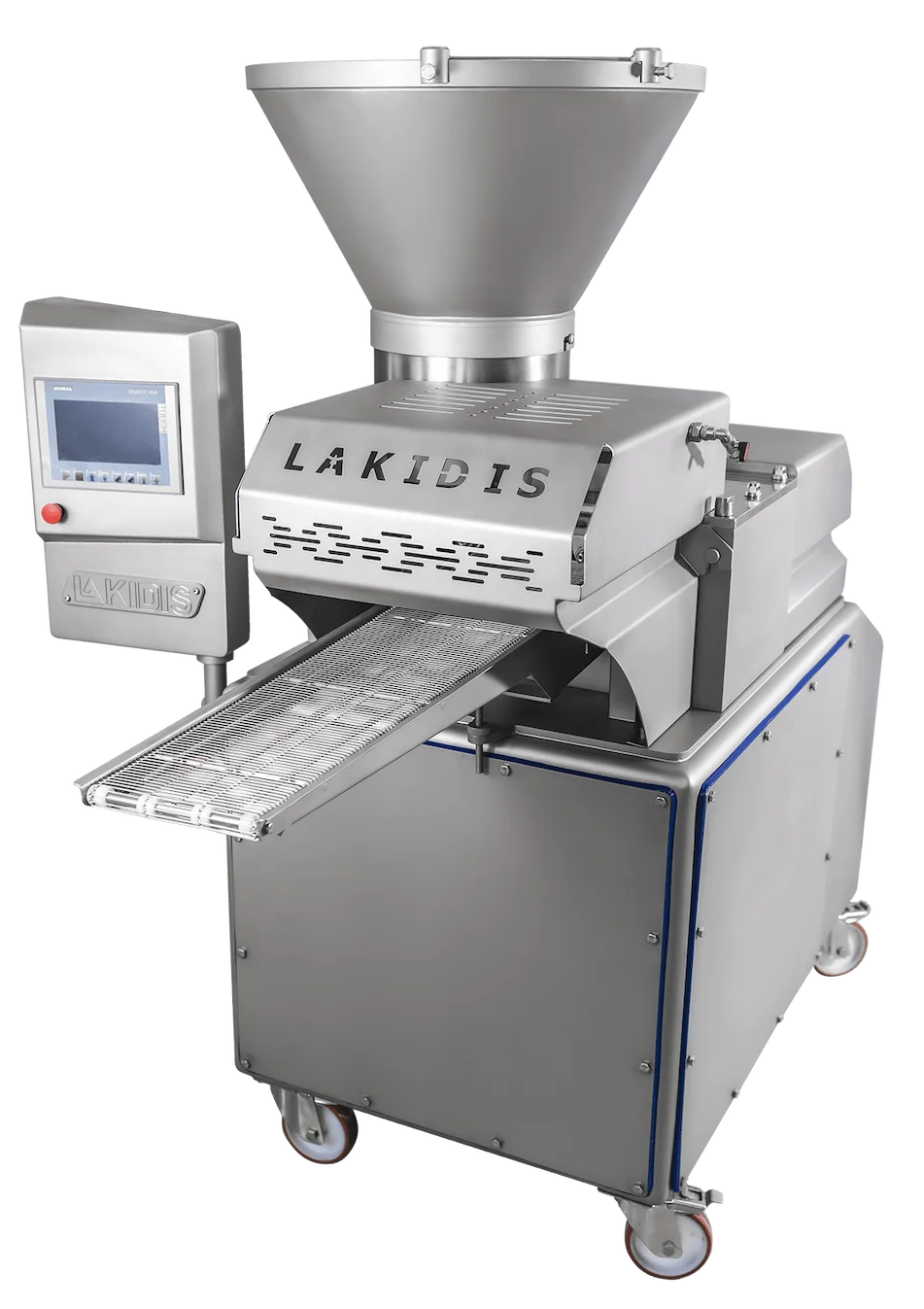

A rotor feeds the mixture to the forming plate, and the discharge belt carries the formed products away. Product shape, thickness and weight are matched to the required mould. The plate is made of food-contact plastic, measures 620 × 180 mm and has a maximum thickness of 16 mm.
Technical sheet data
Technical specifications
Bowl capacity
40 L
Forming speed
15–30 cycles/min
Max. forming plate thickness
16 mm
Discharge belt (L × W)
800 × 200 mm
Forming plate (L × W)
620 × 180 mm
Ćevapi system
Special order
Motor power
1 × 1,5 kW + 1 × 2,2 kW
Dužina prema PDF-u
128 cm + 66 cm pokretne trake
Širina sa kontrolnom tablom
105 cm
Visina sa posudom
167 cm
Application
For hamburgers and patties made from meat and other food mixtures. The manufacturer specifies 15–30 cycles per minute, or up to 1,800 hamburgers per hour; output may differ for non-meat products. A separate ćevapi system is available to order and is not included as standard.
